EP-DG17021
WONDER
39079999.90

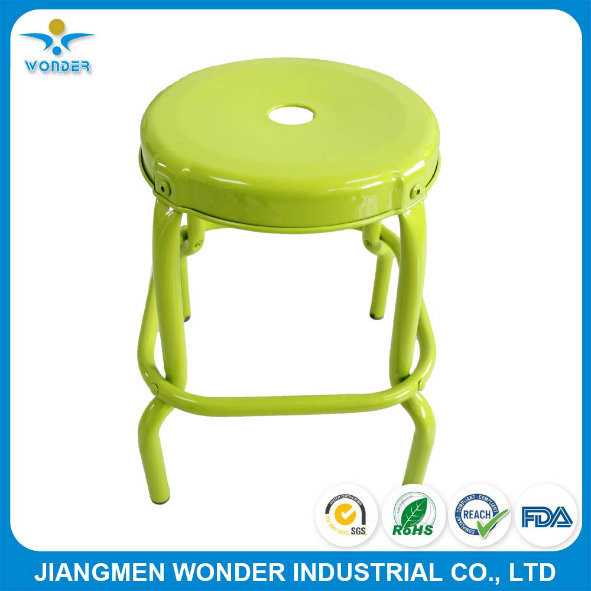

Apple Green Powder Paint with Good Decorative
Description of product
Color | green |
Type | indoor/outdoor |
Gloss | 80-120% |
Thickness | 60-80μm |
Hardness | 2H |
Adhesion | 0 Grade |
Curing | 200ºC*10mins / 180ºC*15mins |
Shelf Life | 12 months |
Product Test
Product Details | |
Type | indoor/outdoor |
Color | green |
Surface Finish | smooth |
Gloss level | 80-120% |
Particle Size | Average 32-42μm |
Specific Gravity | 1.2-1.7g per cubic meter |
Coverage | 8-10 square meters per Kg at 50-90 μm film thickness |
film thickness | 60-80μm |
Application Recommendation | |
Application Voltage | 60-90 KV |
Gun to Component Distance | 15-20CM |
Curing Temperature | 200 degree / 10 mins |
electric current | 25-30MA |
Spray Room | Clear, no other powder coating |
Air pressure | Appropriate |
Powder coated Film Mechanical Properties | |
Adhesion | Cross-cut(3mm),no loss of adhesion |
Impact Resistance | Direct impact 50kg/cm |
Pencil Hardness | 2H |
Cupping Test | 6mm Mandrel |
Bending Test | 5mm |
Powder Coated Film Chemical Resistance | |
Salt Spray Test | 5% NaCl Solution for 500 hours - No change |
Acid Resistance | 5% HCL for 48 hours dip test - No change |
Alkali Resistance | 5% NaOH for 48 hours dip test - No change |
Powder Coating Advantage | |
Ratio | Spray ratio is 90% |
Square | 1KG of powder coating can spray 8-10 square meter |
Adhesive force | Powder Coating adhesive force is stronger 8-10 years |
Color | Powder Coating is not easy to fade in 5-8 years |
Storage Stability | |
Store in ventilated, dry, clean room, temperature < 25ºC | |
Relative humidity 50-65% | |
Away from direct sunlight, fire, heat | |
For best performance, use within 6 months |
Our factories
1.Production workshop set up in 1989, leading powder coating supplier with rich experience in China.
2. 4 Factories in total. Three are Powder Coating Production Bases, one is Nano-Dryplating Spraying Base.
16 Production Lines. 5 Bonding Lines. 9 Sample Lines.
Annual Capacity reaches 10,000 Tons.
3. Nano-Dryplating Silver Chrome Effect Powder Coating is identified as Guangdong High-Tech Product.
4. Oversea Countries: Sweden, Turkey, Russia, Guatemala, Peru, Pakistan, UAE, e
FAQ
Q1. Can I have a sample order for powder coating?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for inspection and customs declaration.
Q3. Do you have any MOQ limit for powder coating?
A: Low MOQ, 1-2kg sample powder checking is available.
Q4. How to proceed an order for powder coating?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer professional after-sale service for every customer.
Welcome to contact us
