Name of Product:
customized epoxy polyester powder coating
1) Description of Product
Mainly made of epoxy resin, polyester resin and curing agent, leveling agent, pigment, filler and other addictives.
1.NANO-DRYPLATING-It has applied for national patent. It meets the most strict environment demands and excellent physics and chemical properties, while the cost is much lower than electroplating. With chrome effect powder coating. (NEW AND HOT)
2.Epoxy Powder Coatings
3.Epoxy-polyester Powder Coatings
4.Polyester Powder Coatings (TGIC/Primid)
5.Polyurethane Powder Coatings
6.Metallic Powder Coatings
7.Functional Powder Coatings
8,Electrostatic Powder Coatings
9.Chrome effect Powder Coatings, etc.
Different Color of Product
2) Mechanical performance
|Item ||Instrument ||Standard ||Testing method |
|Pencil hardness ||Pencil hardness instrument ||≥ H ||GB/6739 |
|Impact resistance ||Impact tester ||≥ 50kg.cm ||GB/T 1732 |
|Flexing Endurance ||Bending Instrument ||≤ 2mm ||GB/T 6742 |
|Adhesive force ||Cross-Cut tester ||0 grade ||GB/T 9286 |
|Bulge ||Bulge instrument ||≥ H ||GB/T 9753 |
3) Chemical property
|Resistance to salt spray ||≥500 Hs ||≥ 9 grade ||GB/T 1771 |
|resistance to heat and humidity ||≥H 1000 Hs ||Slight loss of gloss ||GB/T 1740 |
|Weather ability ||Artificial accelerated aging QUV-B313 240h ||≥ 3 grade ||GB/T 1865 |
Above tests adopt 0.8mm deoiling and derusting cold-rolled steel sheets, coating film thickness 40~80um; performance index of coating film will change with brilliance changing.
Requirement of environment protection: the product doesn't include arsenic, selenium, lead, hexavalent chromium, mercury, stibium, cadmium and other heavy non-ferrous metals and is in fully conformity with requirement of RoHS environment protection.
Storage condition: at about 25ºC and at ventilated indoors, avoiding direct sunlight. Under such condition, powder can be stored for twelve months and should be re-tested if more than twelve months.
4) Trade Items of Product
|MOQ ||200KG |
|Pakage ||Box with PE plastic bag |
|Delivery Term ||FOB, CIF, CFR, EXW, Express deliveery |
|Delivery Time ||15 days after pay us deposit |
|Payment Type ||T/T, L/C |
|Supply Ability ||1000 Tons / Month |
|Port ||Jiangmen/ Shenzhen/ Guangzhou |
| || |

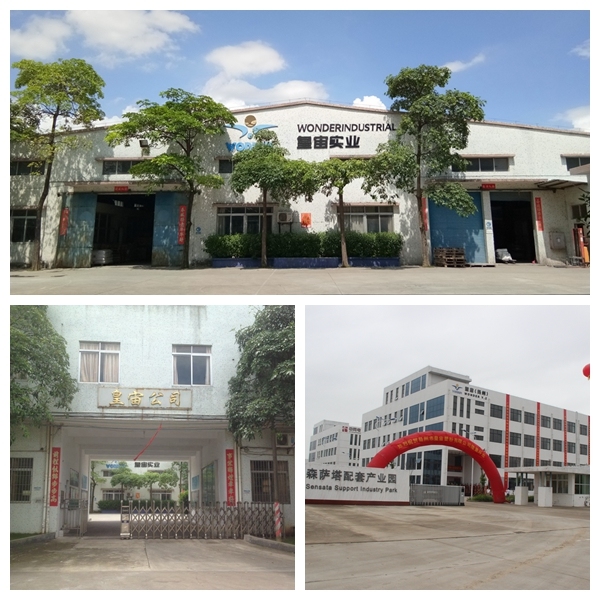

5) Company Information
1.Production workshop set up in 1989, leading powder coating supplier with rich experience in China.
2. 4 Factories in total. Three are Powder Coating Production Bases, one is Nano-Dryplating Spraying Base.
16 Production Lines. 5 Bonding Lines. 9 Sample Lines.
Annual Capacity reaches 10,000 Tons.
3. Nano-Dryplating Silver Chrome Effect Powder Coating is identified as Guangdong High-Tech Product.
4. Oversea Countries: Sweden, Turkey, Russia, Guatemala, Peru, Pakistan, UAE, etc.
6) Why Choose Us:
Advantages we have:
A. Experienced state products supplier;
B. Professional design team and sales department for your service;
C. Factory recognized by EN71/ ROHS/ ISO9001 and so on.
D. 7/24 services for you, all the question will be dealed within 24 hours.
Benefit you get:
A. Stable quality -- Coming from good materials and technic
B. Lower price -- Not cheapest but the lowest at the same quality
C. Good service -- Satisfactory service before and after sale
D. Delivery time -- 10-15 days for mass production
7) How to Order Our Product
Customers offer general information of the product.
Our technician will make a professional suggestion according to your need.
After your confirmation, we will send samples to you for evaluation.
Note: Customers can order all product samples we put or you can also have your own idea, as we are custom-made product supplier, so different colors and types are available.
Q: Can I have a sample order for Powder Coating?
A : Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 10 tons, needs about 20 week days.
Q: Do you have any MOQ limit for powder coating order?
A: Low MOQ, 1kg for sample checking is available
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 4-6 days to arrive. Airline and sea shipping also optional.
Q: How to proceed an order for powder coating?
A : Firstly let us know your requirements or application(For indoor or outdoor use). Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q: Is it OK to print my logo on packaging?
A : Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q: Do you offer guarantee for the products?
A : Yes, we offer 1 year warranty to our products.
9) Welcome to Contact Us
