Nic Powder Coating

Availability:
Quantity:
  • EP-DE162026

  • WONDER

  • 39079999.90

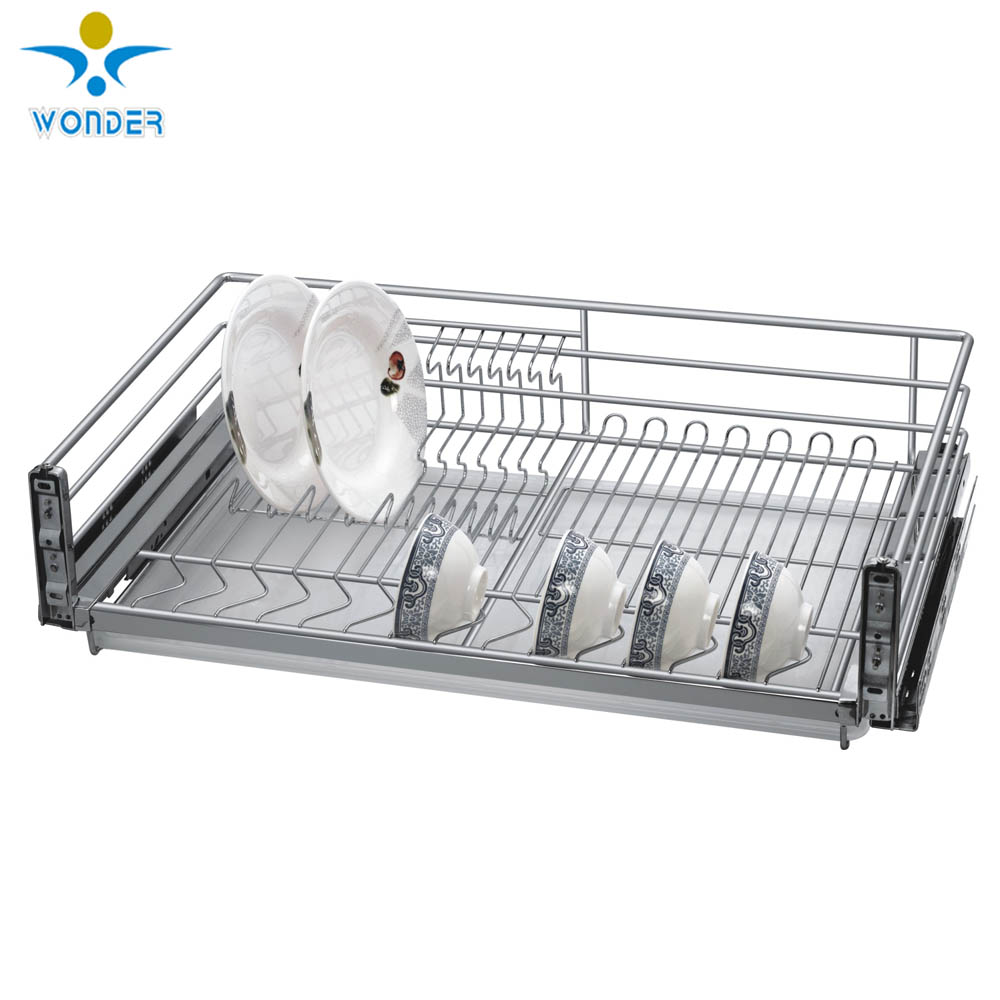

Chrome Silver Kitchenware Polyester Powder Coating Made in China

powder coating york

Description of product

Color Silver
Type indoor
Gloss 400%
Thickness 60-80μm
Hardness 2H
Adhesion 0 Grade
Curing 200ºC*10mins / 180ºC*15mins
Shelf Life 12 months


Product Test

Product Details
Type indoor
Color silver
Surface Finish smooth
Gloss level 400%
Particle Size Average 32-42μm
Specific Gravity 1.2-1.7g per cubic meter
Coverage 8-10 square meters per Kg at 50-90 μm film thickness
film thickness 60-80μm
Application Recommendation
Application Voltage 60-90 KV
Gun to Component Distance 15-20CM
Curing Temperature 200 degree / 10 mins
electric current 25-30MA
Spray Room Clear, no other powder coating
Air pressure Appropriate
Powder coated Film Mechanical Properties
Adhesion Cross-cut(3mm),no loss of adhesion
Impact Resistance Direct impact 50kg/cm
Pencil Hardness 2H
Cupping Test 6mm Mandrel
Bending Test 5mm
Powder Coated Film Chemical Resistance
Salt Spray Test 5% NaCl Solution for 500 hours - No change
Acid Resistance 5% HCL for 48 hours dip test - No change
Alkali Resistance 5% NaOH for 48 hours dip test - No change
Powder Coating Advantage
Ratio Spray ratio is 90%
Square 1KG of powder coating can spray 8-10 square meter
Adhesive force Powder Coating adhesive force is stronger 8-10 years
Color Powder Coating is not easy to fade in 5-8 years
Storage Stability
Store in ventilated, dry, clean room, temperature < 25ºC
Relative humidity 50-65%
Away from direct sunlight, fire, heat
For best performance, use within 6 months

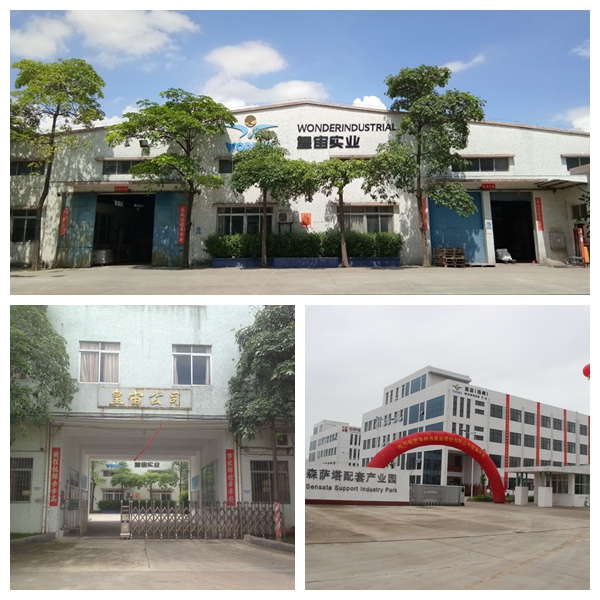

Our factories

1.Production workshop set up in 1989, leading powder coating supplier with rich experience in China.
2. 4 Factories in total. Three are Powder Coating Production Bases, one is Nano-Dryplating Spraying Base.
    16 Production Lines. 5 Bonding Lines. 9 Sample Lines.
    Annual Capacity reaches 10,000 Tons.
 3. Nano-Dryplating Silver Chrome Effect Powder Coating is identified as Guangdong High-Tech Product.
4. Oversea Countries: Sweden, Turkey, Russia, Guatemala, Peru, Pakistan, UAE, e

wagner powder
FAQ

Q1. Can I have a sample order for powder coating?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for inspection and customs declaration.

Q3. Do you have any MOQ limit for powder coating?
A: Low MOQ, 1-2kg sample powder checking is available.

Q4. How to proceed an order for powder coating?
A: Firstly let us know your requirements or application.
   Secondly We quote according to your requirements or our suggestions.
   Thirdly customer confirms the samples and places deposit for formal order.
   Fourthly We arrange the production.

Q5: Do you offer guarantee for the products?
A: Yes, we offer professional after-sale service for every customer.
