Nano Metallic Candy Chrome Blue Powder Coating for racks

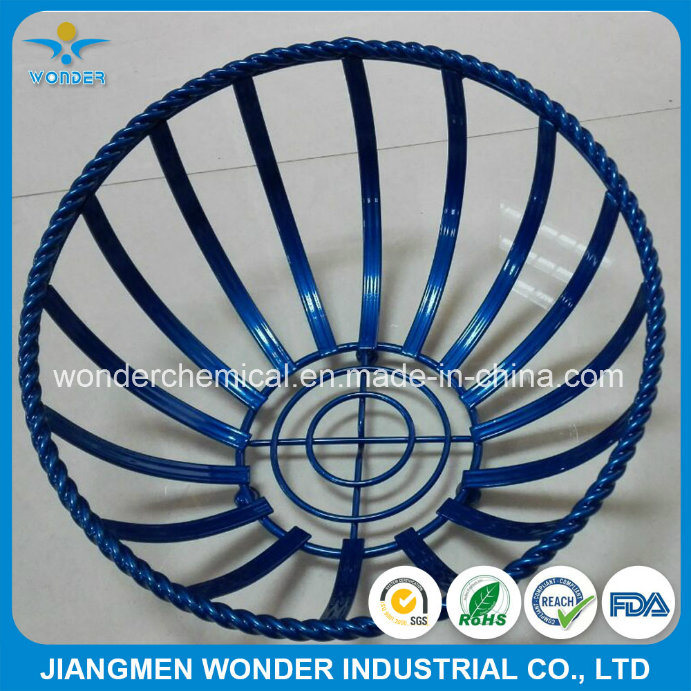

Pictures of Product
Description of Product
Powder coatings are mixed with a certain proportion of the resin, fillers, curing agents and other additives, then prepared by hot extrusion ,crushed and sieved. The products are stable at room temperature storage, then baking heat melted and solidified to form a smooth and bright permanent coating to achieve the purpose of decoration and corrosion.
It is suitable for metal/ iron/ aluminum surface of each indoor product such as furniture, electrical appliance, industrial equipment, sports equipment, toys, hardware, shop tool rack and lamps and lanterns etc.
Color | Chrome Blue Color |
Type | Epoxy Polyester Indoor |
Gloss | 90-120% |
Thickness | 60-80μm |
Hardness | 2H |
Adhesion | 0 Grade |
Curing | 200ºC*10mins / 180ºC*15mins |
Shelf Life | 12 months |
Product test
Test Item | Test Standard | Testing Results |
Specific Gravity | ≤1.7 | <1 |
Gloss | 90 - 120% | 110% |
Thickness | 60~80цm | 77цm |
Adhesive force | GB/T9286-1998 | 0 grade |
Impact Resistance | GB/T1732-1993 | 50kg.cm no cracks nor stripping |
Salt spray test | GB/T1771-1991 | 500H,no pulverization,gloss protection 80% |
Winding Resistance | GB/T6742-1986 | 3mm no cracks nor stripping |
Pencil Hardness | GB/T6739-1996 | 2H |
UV Resistance | GB/T14522-1993 | 240h △E<1,gloss protection 80% |
Flexibility | GB/T 6742-1986 | 2mm |
Heat & Humidity Resistance | GB/T 1740-1979 | >500 Hours,film gloss slightly lose |
Production Process

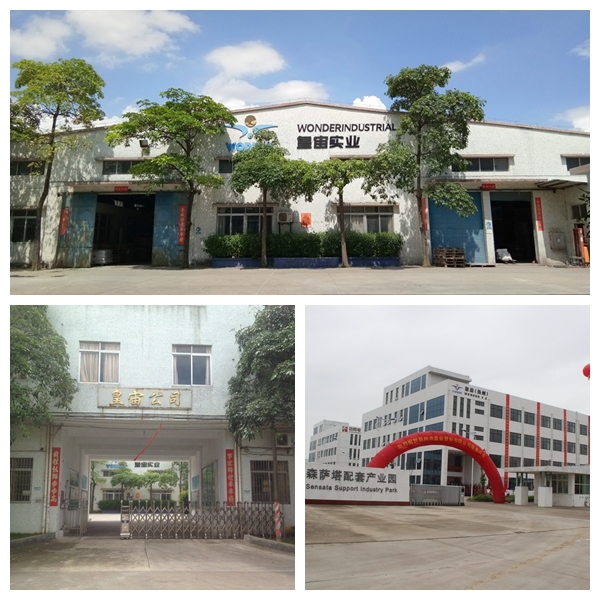

Our factories
FAQ
Q1. Can I have a sample order for powder coating?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for inspection and customs declaration.
Q3. Do you have any MOQ limit for powder coating?
A: Low MOQ, 1-2kg sample powder checking is available.
Q4. How to proceed an order for powder coating?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer professional after-sale service for every customer.
Welcome to contact us
Judy +86-0750-3852856
