Special Powder Coating for Air Conditioner External Unit

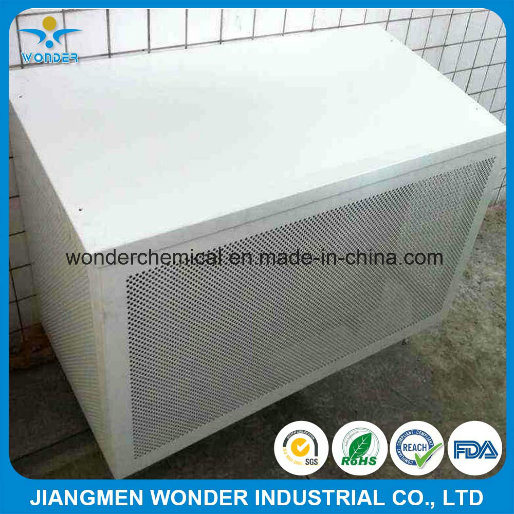

Pictures of Product
Description of Product
Mainly made of epoxy resin, polyester resin and curing agent, leveling agent, pigment, filler and other addictives.
1.NANO-DRYPLATING-It has applied for national patent. It meets the most strict environment demands and excellent physics and chemical properties, while the cost is much lower than electroplating. With chrome effect powder coating. (NEW AND HOT)
2.Epoxy Powder Coatings
3.Epoxy-polyester Powder Coatings
4.Polyester Powder Coatings (TGIC/Primid)
5.Polyurethane Powder Coatings
6.Metallic Powder Coatings
7.Functional Powder Coatings
8.Chrome effect Powder Coatings, etc.
Mechanical performance
Item | Instrument | Standard | Testing method |
Pencil hardness | Pencil hardness instrument | ≥ H | GB/6739 |
Impact resistance | Impact tester | ≥ 50kg.cm | GB/T 1732 |
Flexing Endurance | Bending Instrument | ≤ 2mm | GB/T 6742 |
Adhesive force | Cross-Cut tester | 0 grade | GB/T 9286 |
Bulge | Bulge instrument | ≥ H | GB/T 9753 |
Chemical property
Resistance to salt spray | ≥500 Hs | ≥ 9 grade | GB/T 1771 |
resistance to heat and humidity | ≥H 1000 Hs | Slight loss of gloss | GB/T 1740 |
Weather ability | Artificial accelerated aging QUV-B313 240h | ≥ 3 grade | GB/T 1865 |
Above tests adopt 0.8mm deoiling and derusting cold-rolled steel sheets, coating film thickness 40~80um; performance index of coating film will change with brilliance changing.
Requirement of environment protection: the product doesn't include arsenic, selenium, lead, hexavalent chromium, mercury, stibium, cadmium and other heavy non-ferrous metals and is in fully conformity with requirement of RoHS environment protection.
Storage condition: at about 25ºC and at ventilated indoors, avoiding direct sunlight. Under such condition, powder can be stored for twelve months and should be re-tested if more than twelve months.
Different Color of Product
Cetifications of Product

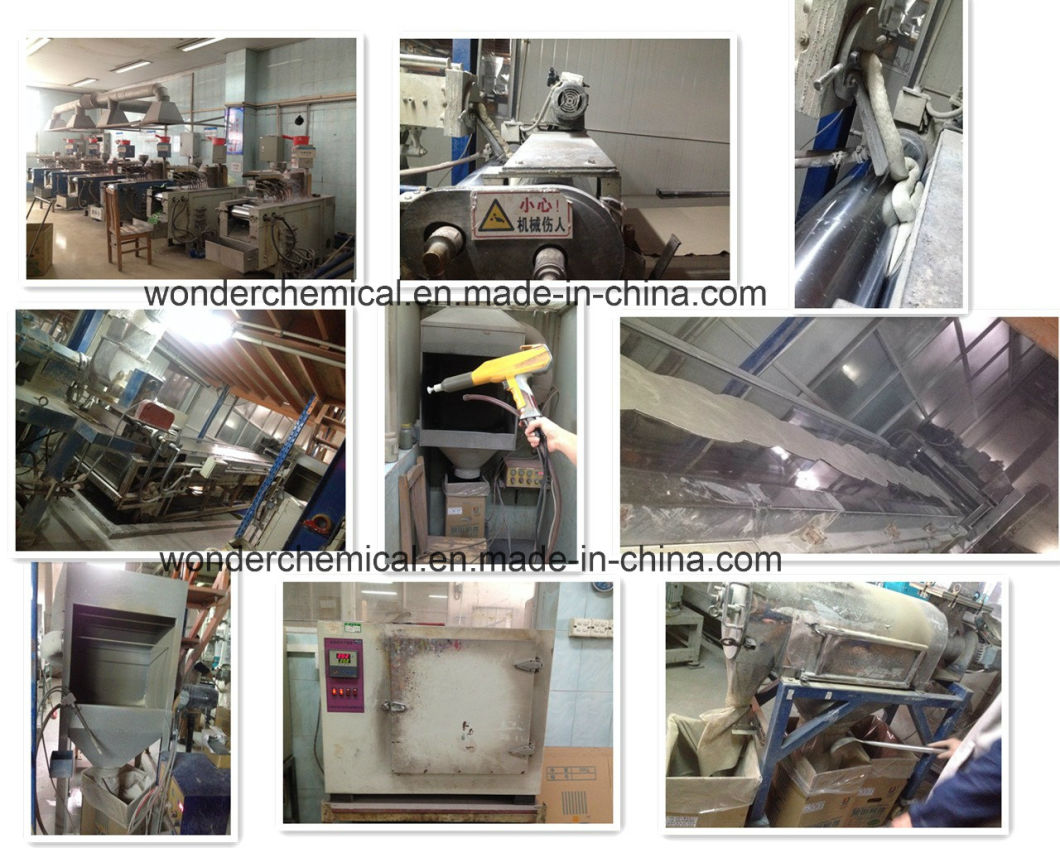

Production Line of Product
Trade Items of Product
MOQ | 200KG |
Pakage | Box with PE plastic bag |
Delivery Term | FOB, CFR, CIF,EXW,Express delivery |
Delivery Time | 15 days after pay us deposit |
Payment Term | T/T |
Supply Ability | 1000 Tons/Month |
Port | Jiangmen / Shenzhen / Guangzhou |
Our team
Our Exhibition
Why Choose Us:
Advantages we have:
A. Experienced state products supplier;
B. Professional design team and sales department for your service;
C. Factory recognized by EN71/ ROHS/ ISO9001 and so on.
D. 7/24 services for you, all the question will be dealed within 24 hours.
Benefit you get:
A. Stable quality -- Coming from good materials and technic
B. Lower price -- Not cheapest but the lowest at the same quality
C. Good service -- Satisfactory service before and after sale
D. Delivery time -- 10-15 days for mass production
How to Order Our Product
Customers offer general information of the product.
Our technician will make a professional suggestion according to your need.
After your confirmation, we will send samples to you for evaluation.
Note: Customers can order all product samples we put or you can also have your own idea, as we are custom-made product supplier, so different colors and types are available.
