Powder Coated Aluminum Frame


nordson encore lt

Product Details
Type High Glossy metallic champagne gold Chrome Effect Powder Paint
Color champagne gold
Surface Finish smooth
Gloss level 200-300%
Particle Size Average 32-42μm
Specific Gravity 1.2-1.7g per cubic meter
Coverage 7-8 square meters per Kg at 60-80 μm film thickness
film thickness 60-80um
Application Recommendation
Application Voltage 60-90 KV
Gun to Component Distance 15-30CM
Curing Temperature 180-200ºC,10 min-15 min
Powder coated Film Mechanical Properties
Adhesion Cross-cut(2mm),no loss of adhesion
Impact Resistance Direct impact 50kg/cm
Pencil Hardness 1H-2H
Cupping Test 6mm Mandrel
Bending Test 5mm
Powder Coated Film Chemical Resistance
Salt Spray Test 5% NaCl Solution for 500 hours - No change
Acid Resistance 5% HCL for 48 hours dip test - No change
Alkali Resistance 5% NaOH for 48 hours dip test - No change
Storage Stability
Store in ventilated, dry, clean room, temperature < 25ºC
Relative humidity 50-65%
Away from direct sunlight, fire, heat
For best performance, use within 6 month

powder coating cambridge

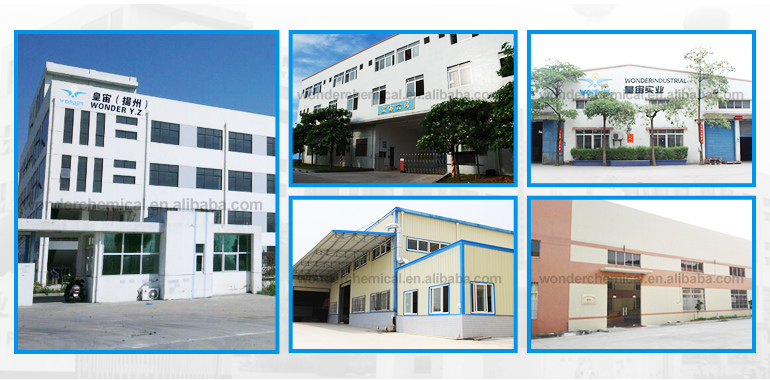

1.Production workshop set up in 1989, leading powder coating supplier with rich experience in China.

2. 4 Factories in total. Three are Powder Coating Production Bases, one is Nano-Dryplating Spraying Base.

16 Production Lines. 5 Bonding Lines. 9 Sample Lines.

Annual Capacity reaches 10,000 Tons.

3. Nano-Dryplating Silver Chrome Effect Powder Coating is identified as Guangdong High-Tech Product.

4. Oversea Countries: Sweden, Turkey, Russia, Guatemala, Peru, Pakistan, UAE, etc.
clear coat powder coat
drylac powder coating
jotun powder
north american powder coating

Q: Can I have a sample order for Powder Coating?

A : Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q: What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 10 tons, needs about 20 week days.

Q: Do you have any MOQ limit for powder coating order?

A: Low MOQ, 1kg for sample checking is available

Q: How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 4-6 days to arrive. Airline and sea shipping also optional.

Q: How to proceed an order for powder coating?

A : Firstly let us know your requirements or application(For indoor or outdoor use). Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

Q: Is it OK to print my logo on packaging?

A : Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q: Do you offer guarantee for the products?

A : Yes, we offer 1 year warranty to our products.
