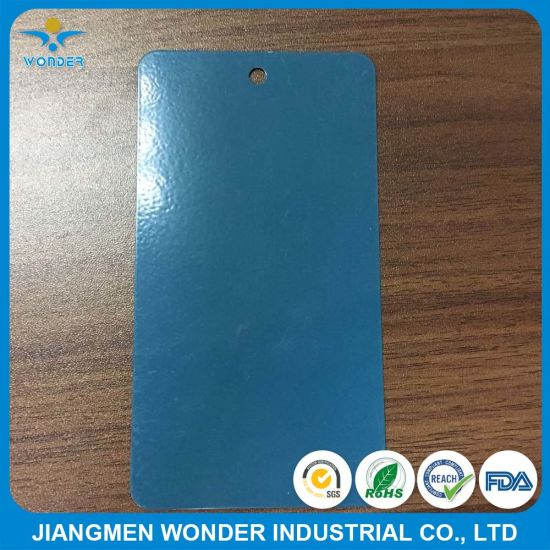

Product Name: RAL5002 blue pure polyester powder coating for funiture
1. Product details:
|Product Details |
|Type ||Polyester Powder Coating; |
|Color ||RAL5002 blue |
|Surface Finish ||Smooth |
|Gloss level ||80-90% |
|Particle Size ||Average 32-42μm |
|Specific Gravity ||1.2-1.7g per cubic meter |
|Coverage ||7-8 square meters per Kg at 60-80 μm film thickness |
|film thickness ||60-80um |
|Application Recommendation |
|Application Voltage ||60-90 KV |
|Gun to Component Distance ||15-30CM |
|Curing Temperature ||180-200ºC,10 min-15 min |
|Powder coated Film Mechanical Properties |
|Adhesion ||Cross-cut(2mm),no loss of adhesion |
|Impact Resistance ||Direct impact 50kg/cm |
|Pencil Hardness ||1H-2H |
|Cupping Test ||6mm Mandrel |
|Bending Test ||5mm |
|Powder Coated Film Chemical Resistance |
|Salt Spray Test ||5% NaCl Solution for 500 hours - No change |
|Acid Resistance ||5% HCL for 48 hours dip test - No change |
|Alkali Resistance ||5% NaOH for 48 hours dip test - No change |
|Storage Stability |
|Store in ventilated, dry, clean room, temperature < 25ºC |
|Relative humidity 50-65% |
|Away from direct sunlight, fire, heat |
|For best performance, use within 6 months |
2. Company introduction
> Production workshop set up in 1989, leading powder coating supplier with rich experience in China.
> 4 Factories in total. Three are Powder Coating Production Bases, one is Nano-Dryplating Spraying Base.
> 16 Production Lines. 5 Bonding Lines. 9 Sample Lines.
> Annual Capacity reaches 10,000 Tons.
> Nano-Dryplating Silver Chrome Effect Powder Coating is identified as Guangdong High-Tech Product.
> Oversea Countries: Sweden, Turkey, Russia, Guatemala, Peru, Pakistan, UAE, etc.
3. Business Terms
|Trade terms ||EXW,FOB, CIF,CFR |
|Payment terms ||T/T, L/C , West Union ,Moneygram , Paypal etc |
|Payment condition ||30% deposit in advance,70% balance before shipment |
|Delivery time ||3-7 days after deposit |
|Packing ||Inner packing:polyethylene bag Outer packing:paper carton |
|Net Weight:20Kgs/25kgs; Gross Weight:21kgs/26kgs |
|shipping ||By sea, by air and by express delivery |
Q: Can I have a sample order for Powder Coating?
A : Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: Can we customize our own colors?
A:yes, you can give us your samples,then we can make the same color according to your samples
Q: What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 10 tons, needs about 20 week days.
Q: Do you have any MOQ limit for powder coating order?
A: Low MOQ, 1kg for sample checking is available
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 4-6 days to arrive. Airline and sea shipping also optional.
Q: How to proceed an order for powder coating?
A : Firstly let us know your requirements or application(For indoor or outdoor use). Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q: Is it OK to print my logo on packaging?
A : Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q: Do you offer guarantee for the products?
A : Yes, we offer 1 year warranty to our products.
