Chrome Candy Color UV-resistant Coating Powder Coating Paint

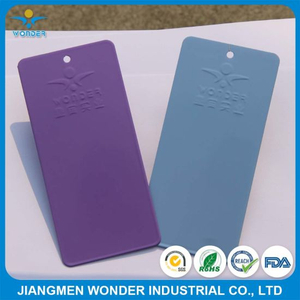

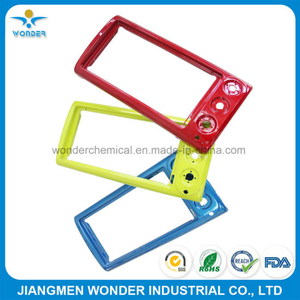

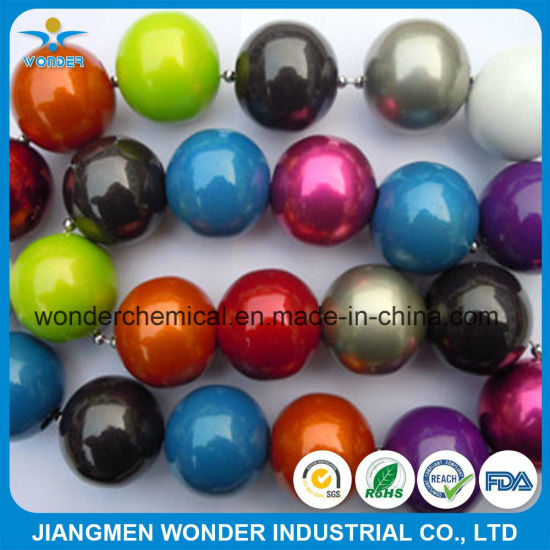

Pictures of Product
Description of Product
| Color | Chrome Candy Color |
| Type | Epoxy Polyester |
| Gloss | 100-120% |
| Thickness | 60-80μm |
| Hardness | 2H |
| Adhesion | 0 Grade |
| Curing | 200ºC*10mins / 180ºC*15mins |
| Shelf Life | 12 months |
Product Test
| Product Details | |
| Type | Epoxy-Polyester Indoor Chrome Type |
| Color | Chrome |
| Surface Finish | smooth |
| Gloss level | 100-120% |
| Particle Size | Average 32-42μm |
| Specific Gravity | 1.2-1.7g per cubic meter |
| Coverage | 8-10 square meters per Kg at 50-90 μm film thickness |
| film thickness | 60-80μm |
| Application Recommendation | |
| Application Voltage | 60-90 KV |
| Gun to Component Distance | 15-20CM |
| Curing Temperature | 200 degree / 10 mins |
| electric current | 25-30MA |
| Spray Room | Clear, no other powder coating |
| Air pressure | Appropriate |
| Powder coated Film Mechanical Properties | |
| Adhesion | Cross-cut(3mm),no loss of adhesion |
| Impact Resistance | Direct impact 50kg/cm |
| Pencil Hardness | 2H |
| Cupping Test | 6mm Mandrel |
| Bending Test | 5mm |
| Powder Coated Film Chemical Resistance | |
| Salt Spray Test | 5% NaCl Solution for 500 hours - No change |
| Acid Resistance | 5% HCL for 48 hours dip test - No change |
| Alkali Resistance | 5% NaOH for 48 hours dip test - No change |
| Powder Coating Advantage | |
| Ratio | Spray ratio is 90% |
| Square | 1KG of powder coating can spray 8-10 square meter |
| Adhesive force | Powder Coating adhesive force is stronger 8-10 years |
| Color | Powder Coating is not easy to fade in 5-8 years |
| Storage Stability | |
| Store in ventilated, dry, clean room, temperature < 25ºC | |
| Relative humidity 50-65% | |
| Away from direct sunlight, fire, heat | |
| For best performance, use within 6 months | |
Production Process
Chrome Candy Color UV-resistant Coating Powder Coating Paint
Pictures of Product
Description of Product
| Color | Chrome Candy Color |
| Type | Epoxy Polyester |
| Gloss | 100-120% |
| Thickness | 60-80μm |
| Hardness | 2H |
| Adhesion | 0 Grade |
| Curing | 200ºC*10mins / 180ºC*15mins |
| Shelf Life | 12 months |
Product Test
| Product Details | |
| Type | Epoxy-Polyester Indoor Chrome Type |
| Color | Chrome |
| Surface Finish | smooth |
| Gloss level | 100-120% |
| Particle Size | Average 32-42μm |
| Specific Gravity | 1.2-1.7g per cubic meter |
| Coverage | 8-10 square meters per Kg at 50-90 μm film thickness |
| film thickness | 60-80μm |
| Application Recommendation | |
| Application Voltage | 60-90 KV |
| Gun to Component Distance | 15-20CM |
| Curing Temperature | 200 degree / 10 mins |
| electric current | 25-30MA |
| Spray Room | Clear, no other powder coating |
| Air pressure | Appropriate |
| Powder coated Film Mechanical Properties | |
| Adhesion | Cross-cut(3mm),no loss of adhesion |
| Impact Resistance | Direct impact 50kg/cm |
| Pencil Hardness | 2H |
| Cupping Test | 6mm Mandrel |
| Bending Test | 5mm |
| Powder Coated Film Chemical Resistance | |
| Salt Spray Test | 5% NaCl Solution for 500 hours - No change |
| Acid Resistance | 5% HCL for 48 hours dip test - No change |
| Alkali Resistance | 5% NaOH for 48 hours dip test - No change |
| Powder Coating Advantage | |
| Ratio | Spray ratio is 90% |
| Square | 1KG of powder coating can spray 8-10 square meter |
| Adhesive force | Powder Coating adhesive force is stronger 8-10 years |
| Color | Powder Coating is not easy to fade in 5-8 years |
| Storage Stability | |
| Store in ventilated, dry, clean room, temperature < 25ºC | |
| Relative humidity 50-65% | |
| Away from direct sunlight, fire, heat | |
| For best performance, use within 6 months | |
Production Process
