Quantity: | |
---|---|
PT-B24523
One-Component Paint
ISO9001, RoHS, SGS, En71, FDA, Reach
Steel
Pigment
Conversion Type
Ral 5012 Light Blue Powder Coating
85%
80um
Smooth
25kg/Package
Wonder
Lined in with Double PE Bags. Packed in Carton Box
carton size: 39.5cm*30cm*35cm.
China
3907999990
Product Details | |

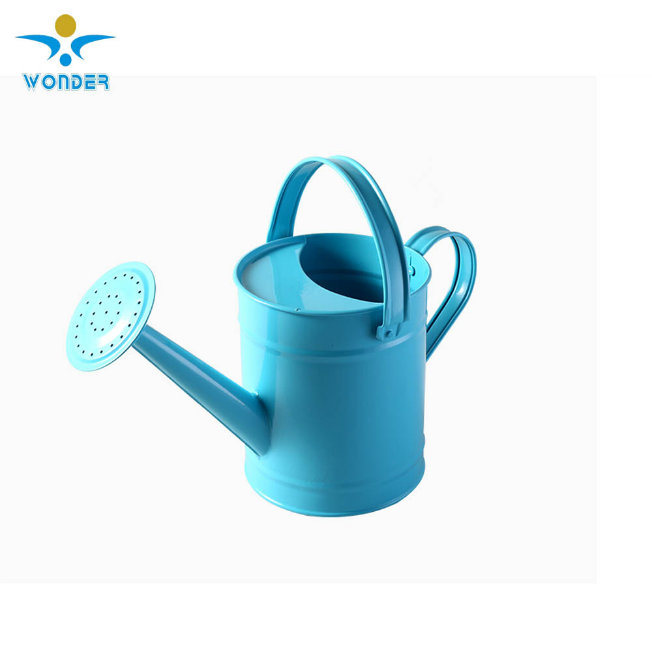

Type | ral 5012 light blue powder coating for outdoor Iron garden tools kettle |
Color | ral5012 blue |
Surface Finish | smooth |
Gloss level | 85% |
Particle Size | Average 32-42μm |
Specific Gravity | 1.2-1.7g per cubic meter |
Coverage | 8-10 square meters per Kg at 30-90 μm film thickness |
film thickness | 60-80um |
Application Recommendation | |
Application Voltage | 60-90 KV |
Gun to Component Distance | 15-30CM |
Curing Temperature | 180-200ºC,10 min-15 min |

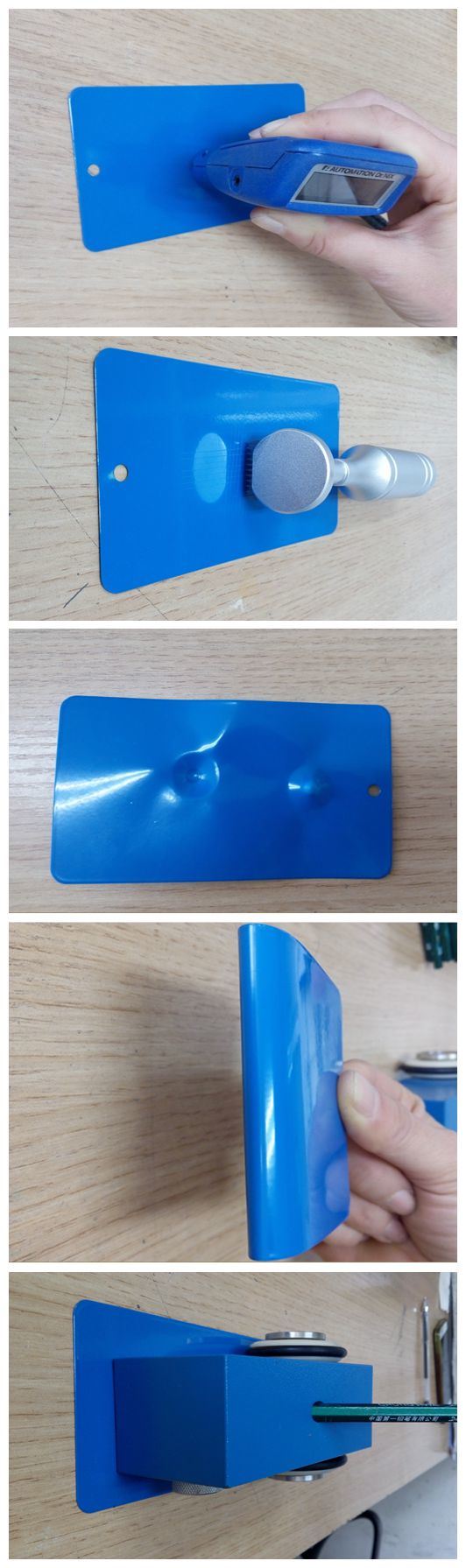

Powder coated Film Mechanical Properties | |
Adhesion | Cross-cut(2mm),no loss of adhesion |
Impact Resistance | Direct impact 50kg/cm |
Pencil Hardness | 1H-2H |
Cupping Test | 6mm Mandrel |
Bending Test | 5mm |
Powder Coated Film Chemical Resistance | |
Salt Spray Test | 5% NaCl Solution for 500 hours - No change |
Acid Resistance | 5% HCL for 48 hours dip test - No change |
Alkali Resistance | 5% NaOH for 48 hours dip test - No change |
Storage Stability | |
Store in ventilated, dry, clean room, temperature < 25ºC | |
Relative humidity 50-65% | |
Away from direct sunlight, fire, heat | |
For best performance, use within 6 months |
