Chrome Effect Silver Chrome Powder Coating

Quantity:
  • GD-

  • RoHS/Reach/En71/FDA/ISO9001

  • Smooth/Textured

  • High/Semi/Matt/Custom Gloss

  • 6 -10 Squares Per Kilogram

  • WONDER

  • Carton

  • 39.5cm*30cm*35cm=0.41475CBM

  • Guangdong, China

  • 3907999990

Chrome effect silver chrome powder coating/powder paint

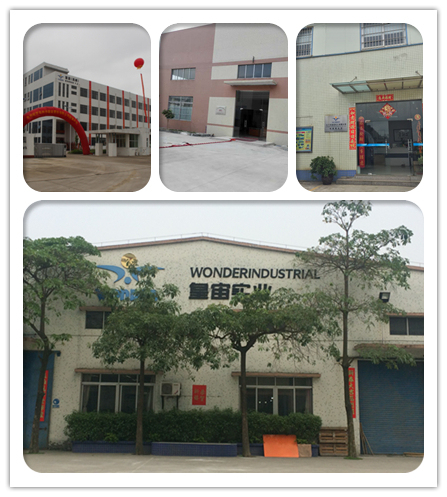

1 About our company



Chrome Effect Silver Chrome Powder Coating


Established in September 2006, our company is a subsidiary of Guangdong Charming Inc. We began our powder coating business in 1989 and are one of the first batch of powder coating suppliers in China. After 20 years of development, we currently have a professional team with excellent working quality, theory and rich practical experience. And we won appreciation from some famous company such as ,WAL MART ,MEDIA,CARREFOUR,KELON, etc.

2 Product Description

Brief Description:

Epoxy resin and polyester resin are adopted as main raw material. It has excellent decoration and mechanical performance and

good corrosion prevention of epoxy and polyester.

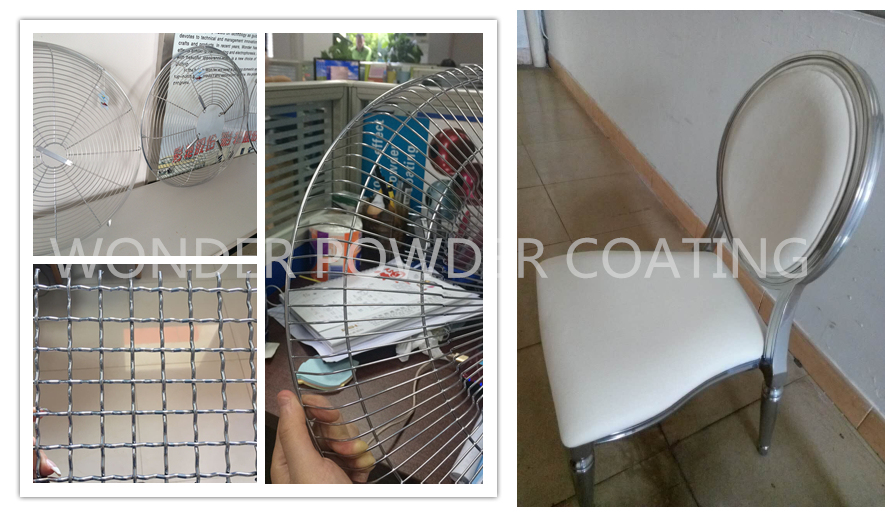

Samples:


Chrome Effect Silver Chrome Powder Coating

Characteristics:

1Excellent adhesive force, impact resistance and surface hardness, flexibility, adhesive force and other mechanical performance.

2 High luster, good flow leveling and good apparent result of coating film.

3 Excellent chemicals resistance and corrosion prevention performance.

4 Be more excellent than heat-resistance and light resistant stability of pure epoxy powder.

Usage:

1Corrosion prevention and chemicals resistance product: oil pipeline, water pipe, valve, agricultural equipment and automotive

parts etc.

2 Electric insulation product: mechanical & electrical equipment, shell of instrument and motor rotor etc.

3 Furniture, goods shelves, office products, security door, safe case and health and fitness facilities etc.

Product series:

1Can be made into product with each brilliance and color; specific color and brilliance should be designated by users

2Can be made of sand grain, wrinkles, textured, chewy texture, hammer texture, moire texture, point spread texture, imitation stone effect, metal effect, wood effect, antique effect and many other art textured effect.

Application:

---Curing condition: 200°C*10mins / 180°C*15mins / 160°C*20mins/ (Actual temperature of working piece).

---Spraying mode: High voltage electrostatic spraying: 60-80 KV.

---Film thickness: 40~150 microns, recommended 60~80 microns.

---Average coverage: 10~12 sqm/kg, thickness 60 microns (calculated in 100% utilization)

Physical Properties:

---Specific gravity: 1.2~1.8g/cm3 (due to different formulations and colors vary).

---Particle size: Standard for average particle size 35~40 microns, more than 70 microns and smaller than 10 microns under 5%.

Physical Property:


Chrome Effect Silver Chrome Powder Coating


Item Instrument tandard Testing method
Pencil hardness Pencil hardness instrument ≥ H GB/6739
Impact resistance Impact tester ≥ 50 kg.cm GB/T 1732
Flexing endurance Bending instrument ≤ 2mm GB/T 6742
Adhesive force Cross-Cut tester 0 grade GB/T 9286
Bulge Bulge instrument ≥ 6 mm GB/T9753

Chemical property:
Resistance to salt spray ≥ 500 Hs ≥ 9 grade GB/T 1771
Resistance to heat and humidity ≥ 1000 Hs Slight loss of gloss GB/T 1740


3 Product Process:


Chrome Effect Silver Chrome Powder Coating


4 How about the shipment details?

Package

Carton packing with liner of double polyethylene bags, Net weight 20kg each.


Chrome Effect Silver Chrome Powder Coating

Storage and shippment

The product must be stored in ventilated, dry and clean room with temperature below 25oC, Keep it away from fire, heat,and direct sunlight. Outdoor stacking is prohibited. Avoid rains and exposure to sunshine during shipment. The period of validity is 6 month under above condition. Expired products can not be used unless re-testing result meets the utilization standards.

5 FAQ

Q1. Can I have a sample order for Powder Coating?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 10 tons, needs about 20 days.

Q3. Do you have any MOQ limit for powder coating order?

A: Low MOQ, 1kg for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 4-6 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for powder coating?

A: Firstly let us know your requirements or application(For indoor or outdoor use).
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on packaging?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products.
