Electrostatic Spray Antique Copper Hammer Tone Texture Powder Coating

Quantity:
  • PT type
  • RoHS, ISO9001, SGS, En71, FDA, Reach
  • Steel
  • Film Forming Matter
  • Conversion Type
  • Electrostatic Spray Antique Copper Hammer Tone Tex
  • High/Semi/Matte
  • 60-80um
  • 0 Grade
  • 2h
  • 12 Months
  • 180 Degree/15mins, 200 Degree/10mins
  • High Voltage Electrostatic Spraying 40-80kv
  • at About 25 Degree and at Ventilated Indoors
  • Lined in with Double PE Bags. Packed in Carton Box
  • Wonder
  • 25kg/CTN
  • carton size: 39.5cm*30cm*35cm.
  • China
  • 3907999990
electrostatic Spray Antique copper hammer tone texture powder coating

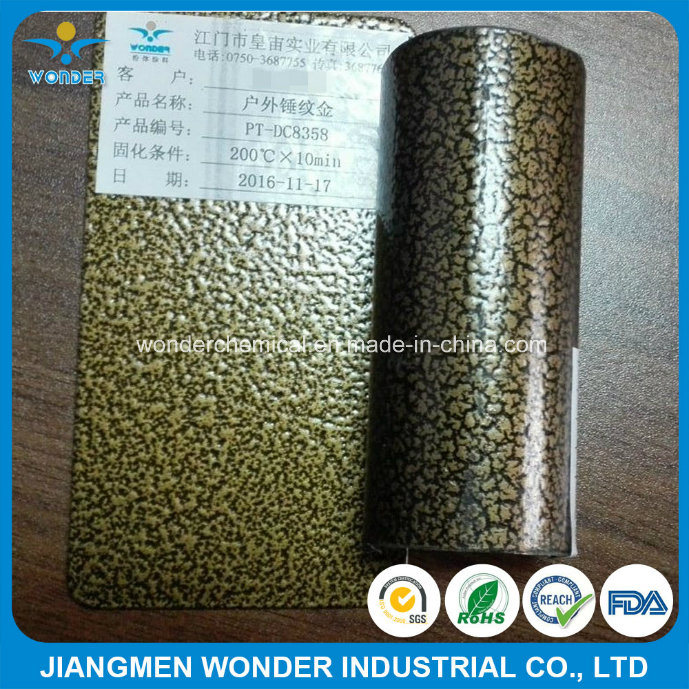

Pictures of Product


Electrostatic Spray Antique Copper Hammer Tone Texture Powder Coating


Description
of Product

Powder coatings are mixed with a certain proportion of the resin, fillers, curing agents and other additives, then prepared by hot extrusion ,crushed and sieved. The products are stable at room temperature storage, then baking heat melted and solidified to form a smooth and bright permanent coating to achieve the purpose of decoration and corrosion.

It is suitable for metal/ iron/ aluminum surface of each indoor product such as furniture, electrical appliance, industrial equipment, sports equipment, toys, hardware, shop tool rack and lamps and lanterns etc.

Color Copper Color
Type Epoxy Polyester Indoor
Gloss 10-20%
Thickness 60-80μm
Hardness 2H
Adhesion 0 Grade
Curing 200ºC*10mins / 180ºC*15mins
Shelf Life 12 months



Product Test


Electrostatic Spray Antique Copper Hammer Tone Texture Powder Coating
Product Details
Type

Epoxy-Polyester Indoor Chrome Type

Color Chrome
Surface Finish smooth
Gloss level 10-20%
Particle Size Average 32-42μm
Specific Gravity 1.2-1.7g per cubic meter
Coverage 8-10 square meters per Kg at 50-90 μm film thickness
film thickness 60-80μm
Application Recommendation
Application Voltage 60-90 KV
Gun to Component Distance 15-20CM
Curing Temperature 200 degree / 10 mins
electric current 25-30MA
Spray Room Clear, no other powder coating
Air pressure Appropriate
Powder coated Film Mechanical Properties
Adhesion Cross-cut(3mm),no loss of adhesion
Impact Resistance Direct impact 50kg/cm
Pencil Hardness 2H
Cupping Test 6mm Mandrel
Bending Test 5mm
Powder Coated Film Chemical Resistance
Salt Spray Test 5% NaCl Solution for 500 hours - No change
Acid Resistance 5% HCL for 48 hours dip test - No change
Alkali Resistance 5% NaOH for 48 hours dip test - No change
Powder Coating Advantage
Ratio Spray ratio is 90%
Square 1KG of powder coating can spray 8-10 square meter
Adhesive force Powder Coating adhesive force is stronger 8-10 years
Color Powder Coating is not easy to fade in 5-8 years
Storage Stability
Store in ventilated, dry, clean room, temperature < 25ºC
Relative humidity 50-65%
Away from direct sunlight, fire, heat
For best performance, use within 6 months

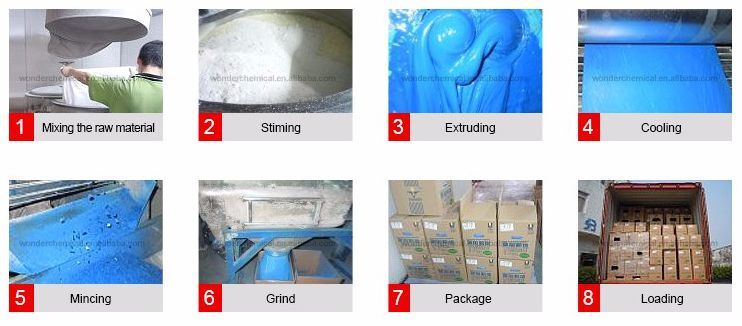

Production Process

Electrostatic Spray Antique Copper Hammer Tone Texture Powder Coating


Electrostatic Spray Antique Copper Hammer Tone Texture Powder Coating

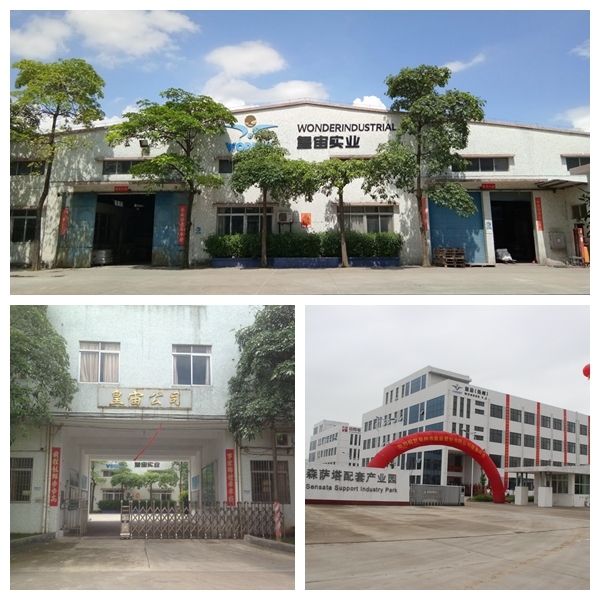

Our factories

Electrostatic Spray Antique Copper Hammer Tone Texture Powder Coating

FAQ

Q1. Can I have a sample order for powder coating?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for inspection and customs declaration.

Q3. Do you have any MOQ limit for powder coating?
A: Low MOQ, 1-2kg sample powder checking is available.


Q4. How to proceed an order for powder coating?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q5: Do you offer guarantee for the products?
A: Yes, we offer professional after-sale service for every customer.
