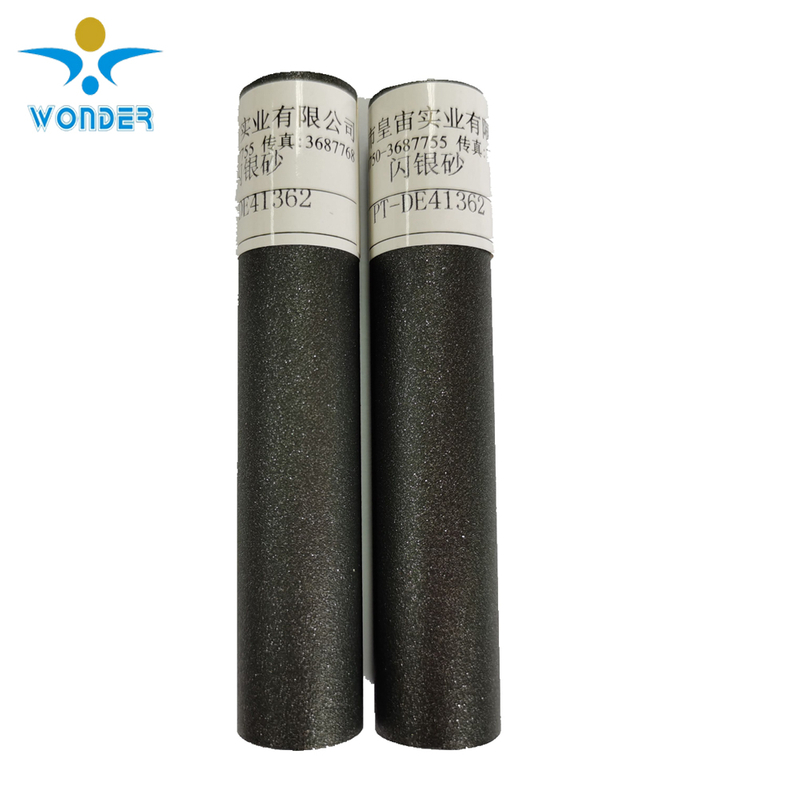

Epoxy Polyester Black Silver Shiny Effect Powder Coating for Household Products

Availability:
Quantity:
  • PT-DE41362

  • Wonder

  • 39079999.90

Specification

Product Details
Type Epoxy Polyester Black Silver Shiny Effect Powder Coating for Household Products
Color black silver
Surface Finish sand
Gloss level 10%
Particle Size Average 32-42μm
Specific Gravity 1.2-1.7g per cubic meter
Coverage 8-10 square meters per Kg at 30-90 μm film thickness
film thickness Two Layers 120-150um
Application Recommendation
Application Voltage 40-60 KV
Gun to Component Distance 15-30CM
Curing Temperature 200ºC x 10min
Powder coated Film Mechanical Properties
Adhesion Cross-cut(2mm),no loss of adhesion
Impact Resistance Direct impact 50kg/cm
Pencil Hardness 2H
Cupping Test 6mm Mandrel
Bending Test 5mm
Powder Coated Film Chemical Resistance
Salt Spray Test 5% NaCl Solution for 500 hours - No change
Acid Resistance 5% HCL for 48 hours dip test - No change
Alkali Resistance 5% NaOH for 48 hours dip test - No change
Storage Stability
Store in ventilated, dry, clean room, temperature < 25ºC
Relative humidity 50-65%
Away from direct sunlight, fire, heat
For best performance, use within 6 months


Advantages:
1.Environmental, pass ROSH standard.
2.Powder can be recycled, sieved, and repeated used.
3.With rich colors. Gold, silver, chromium, nickel and various colors.
4.Super high gloss, reach above 500%. Silver chrome effect can replace electroplating.
5.Fine resistance to fingerprints, scratches, and oxidation.
6.Compared with electroplating, it can save 50% - 60% cost.
7.Pass FDA Test (V.S.21CFR/F.D.A),
8.Pass impact resistance (GB/T1732-1993) 30KG·CM.
9.Good adhesion (GB/9286-1998) GTO (BEST),
10.2H hardness, strong anti-scratch.
11.Salt Spray Test 100 hours, 2-year warranty at temperature.

Production Process
1. Mixing the raw materials
2. Stiring
3. Extruding
4. Cooling
5. Mincing
6. Grinding
7. Packing
8. Loading

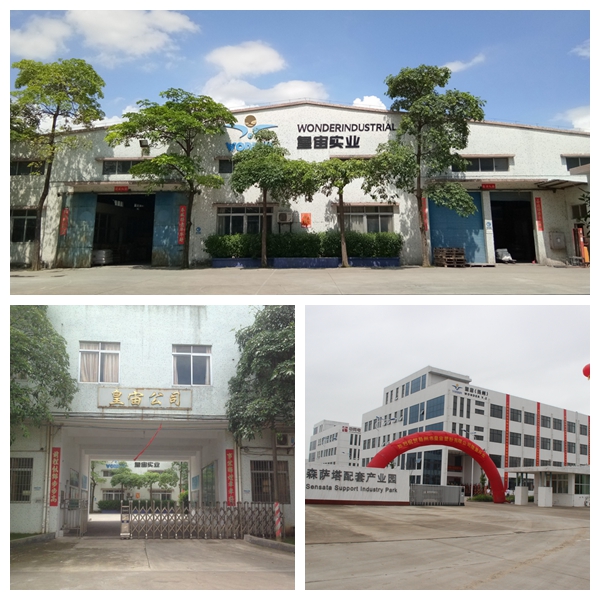

Our Factories
1. Production workshop set up in 1989, leading powder coating supplier with rich experience in China.
2. Four factories in total. Three are Powder Coating Production Base, one is Nano-Dryplatng Spraying Base.
3. 16 Production Lines. 5 Bonding Lines. 9 Sample Lines.
4. Annual Capacity reaches 10,000 Tons.
5. Nano-Dryplating Silver Chrome Effect Powder Coating is identified as Guangdong High-Tech Product.
6. Oversea Countries: Sweden, America, Turkey, Russia, Guatemala, Peru, Pakistan, UAE, Vietnam, Sri Lanka, etc,
7. Native Cooperative Clients: MEDIA, GREE, KELON, DAYANG.
factory

Why Choose Us?
1. Quatlity Control. 24 cabins to keep sample powder of each batch production. The quality can be traced within 2 years if any problem occurs.
2. Various Products. Thousands of colors. Nano Dray-Plating Colors. Metallic Silver Gold Effects. Special sand, wrinkle, hammer vein texture.
3. Technical Support. Advice on coating line setup, integrated solution on coating. Professional production tracking, punctual delivery. Quality tracking system. Regular follow-up.


FAQ
Q1. Can I have a sample order for powder coating?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for inspection and customs declaration.

Q3. Do you have any MOQ limit for powder coating?
A: Low MOQ, 1-2kg sample powder checking is available.

Q4. How to proceed an order for powder coating?
A: Firstly let us know your requirements or application.
   Secondly We quote according to your requirements or our suggestions.
   Thirdly customer confirms the samples and places deposit for formal order.
   Fourthly We arrange the production.

Q5: Do you offer guarantee for the products?
A: Yes, we offer professional after-sale service for every customer.
