EP-DR16493
Metal
Film Forming Matter
Antiseptic Paint
Conversion Type
120-150%
120-150um
2h
0 Grade
50kg/Cm
WONDER
20kg/CTN
39.5*30*35
Guangdong, China
3907999990
| Product Details | |

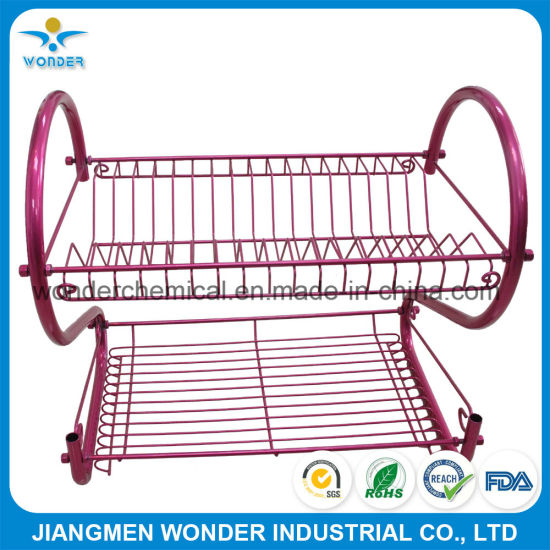

| Type | Nano Mirror Chrome Effect Rose Clear Coat Powder Coating |
| Color | Chrome Rose |
| Surface Finish | Smooth |
| Gloss level | 120-150% |
| Particle Size | Average 32-42μm |
| Specific Gravity | 1.2-1.7g per cubic meter |
| Coverage | 8-10 square meters per Kg at 30-90 μm film thickness |
| film thickness | Two Layers 120-150um |
| Application Recommendation | |
| Application Voltage | 60-90 KV |
| Gun to Component Distance | 15-30CM |
| Curing Temperature | 200ºC X 10min |
| Powder coated Film Mechanical Properties | |
| Adhesion | Cross-cut(2mm),no loss of adhesion |
| Impact Resistance | Direct impact 50kg/cm |
| Pencil Hardness | 2H |
| Cupping Test | 6mm Mandrel |
| Bending Test | 5mm |
| Powder Coated Film Chemical Resistance | |
| Salt Spray Test | 5% NaCl Solution for 500 hours - No change |
| Acid Resistance | 5% HCl for 48 hours DIP test - No change |
| Alkali Resistance | 5% NaOH for 48 hours DIP test - No change |
| Storage Stability | |
| Store in ventilated, dry, clean room, temperature < 25ºC | |
| Relative humidity 50-65% | |
| Away from direct sunlight, fire, heat | |
| For best performance, use within 6 months | |
| Product Details | |
| Type | Nano Mirror Chrome Effect Rose Clear Coat Powder Coating |
| Color | Chrome Rose |
| Surface Finish | Smooth |
| Gloss level | 120-150% |
| Particle Size | Average 32-42μm |
| Specific Gravity | 1.2-1.7g per cubic meter |
| Coverage | 8-10 square meters per Kg at 30-90 μm film thickness |
| film thickness | Two Layers 120-150um |
| Application Recommendation | |
| Application Voltage | 60-90 KV |
| Gun to Component Distance | 15-30CM |
| Curing Temperature | 200ºC X 10min |
| Powder coated Film Mechanical Properties | |
| Adhesion | Cross-cut(2mm),no loss of adhesion |
| Impact Resistance | Direct impact 50kg/cm |
| Pencil Hardness | 2H |
| Cupping Test | 6mm Mandrel |
| Bending Test | 5mm |
| Powder Coated Film Chemical Resistance | |
| Salt Spray Test | 5% NaCl Solution for 500 hours - No change |
| Acid Resistance | 5% HCl for 48 hours DIP test - No change |
| Alkali Resistance | 5% NaOH for 48 hours DIP test - No change |
| Storage Stability | |
| Store in ventilated, dry, clean room, temperature < 25ºC | |
| Relative humidity 50-65% | |
| Away from direct sunlight, fire, heat | |
| For best performance, use within 6 months | |
