EP
RoHS/Reach/En71/FDA/ISO9001
Smooth/Textured
High/Semi/Matt/Custom Gloss
6 -10 Squares Per Kilogram
WONDER
Carton
39.5cm*30cm*35cm=0.41475CBM
Guangdong, China
3907999990
Established in September 2006, our company is a subsidiary of Guangdong Charming Inc. We began our powder coating business in 1989 and are one of the first batch of powder coating suppliers in China. After 20 years of development, we currently have a professional team with excellent working quality, theory and rich practical experience. And we won appreciation from some famous company such as ,WAL MART ,MEDIA,CARREFOUR,KELON, etc.
2 Product Description
Brief Description:
Epoxy resin and polyester resin are adopted as main raw material. It has excellent decoration and mechanical performance and
good corrosion prevention of epoxy and polyester.

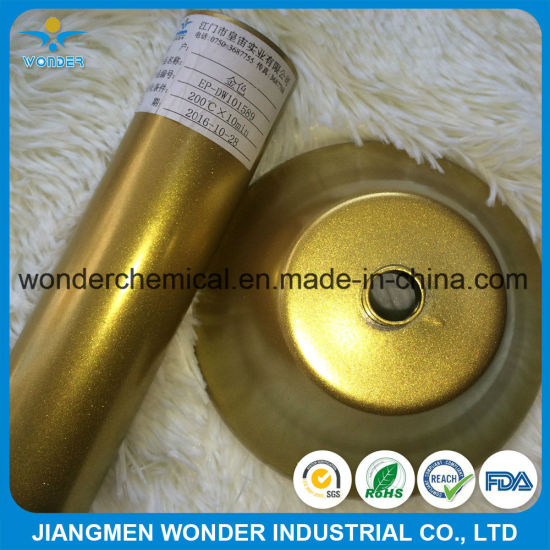

Samples:
Characteristics:
1Excellent adhesive force, impact resistance and surface hardness, flexibility, adhesive force and other mechanical performance.
2 High luster, good flow leveling and good apparent result of coating film.
3 Excellent chemicals resistance and corrosion prevention performance.
4 Be more excellent than heat-resistance and light resistant stability of pure epoxy powder.
Usage:
1Corrosion prevention and chemicals resistance product: oil pipeline, water pipe, valve, agricultural equipment and automotive
parts etc.
2 Electric insulation product: mechanical & electrical equipment, shell of instrument and motor rotor etc.
3 Furniture, goods shelves, office products, security door, safe case and health and fitness facilities etc.
Product series:
1Can be made into product with each brilliance and color; specific color and brilliance should be designated by users
2Can be made of sand grain, wrinkles, textured, chewy texture, hammer texture, moire texture, point spread texture, imitation stone effect, metal effect, wood effect, antique effect and many other art textured effect.
Application:
---Curing condition: 200°C*10mins / 180°C*15mins / 160°C*20mins/ (Actual temperature of working piece).
---Spraying mode: High voltage electrostatic spraying: 60-80 KV.
---Film thickness: 40~150 microns, recommended 60~80 microns.
---Average coverage: 10~12 sqm/kg, thickness 60 microns (calculated in 100% utilization)
Physical Properties:
---Specific gravity: 1.2~1.8g/cm3 (due to different formulations and colors vary).
---Particle size: Standard for average particle size 35~40 microns, more than 70 microns and smaller than 10 microns under 5%.
Physical Property:
| Item | Instrument | tandard | Testing method |
| Pencil hardness | Pencil hardness instrument | ≥ H | GB/6739 |
| Impact resistance | Impact tester | ≥ 50 kg.cm | GB/T 1732 |
| Flexing endurance | Bending instrument | ≤ 2mm | GB/T 6742 |
| Adhesive force | Cross-Cut tester | 0 grade | GB/T 9286 |
| Bulge | Bulge instrument | ≥ 6 mm | GB/T9753 |
| Resistance to salt spray | ≥ 500 Hs | ≥ 9 grade | GB/T 1771 |
| Resistance to heat and humidity | ≥ 1000 Hs | Slight loss of gloss | GB/T 1740 |
4 How about the shipment details?
Package
Carton packing with liner of double polyethylene bags, Net weight 20kg each.
Storage and shippment
The product must be stored in ventilated, dry and clean room with temperature below 25oC, Keep it away from fire, heat,and direct sunlight. Outdoor stacking is prohibited. Avoid rains and exposure to sunshine during shipment. The period of validity is 6 month under above condition. Expired products can not be used unless re-testing result meets the utilization standards.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 10 tons, needs about 20 days.
A: Low MOQ, 1kg for sample checking is available
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 4-6 days to arrive. Airline and sea shipping also optional.
A: Firstly let us know your requirements or application(For indoor or outdoor use).
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: Yes, we offer 1 year warranty to our products.
